EcoTex Woven (PP) Polypropylene
EcoTex Woven (PP) Polypropylene
Kain yang terbuat dari serat polipropilena (PP) yang ditenun atau dianyam secara teratur, seperti anyaman keranjang tetapi dalam skala halus.
EcoTex Woven Polypropylene (PP)
Material geosintetik berbentuk lembaran yang dibuat dari benang Polypropylene (PP) berkualitas tinggi melalui proses rajutan atau anyaman. Proses ini menghasilkan material dengan kekuatan tarik yang sangat tinggi, stabilitas dimensi yang baik, serta daya tahan jangka panjang. Karena sifatnya yang kuat dan ekonomis, EcoTex woven menjadi salah satu material paling banyak digunakan dalam berbagai proyek sipil, geoteknik, dan lingkungan.
Keunggulan EcoTex Woven PP
- Kekuatan Tarik Tinggi: Memberikan daya tahan terhadap beban besar dan tarikan yang sering terjadi pada tanah timbunan atau konstruksi.
- Tahan Lama: Resisten terhadap degradasi biologis, paparan bahan kimia, serta serangan bakteri.
- Efisiensi Biaya: Memungkinkan penghematan material timbunan serta mengurangi biaya perawatan struktur jangka panjang.
- Umur Pakai Panjang: Stabil terhadap paparan cuaca, sinar UV, dan perubahan suhu.
- Fleksibel & Praktis: Mudah dipasang di lapangan, sehingga mempercepat pelaksanaan proyek konstruksi.
Fungsi Utama EcoTex Woven PP

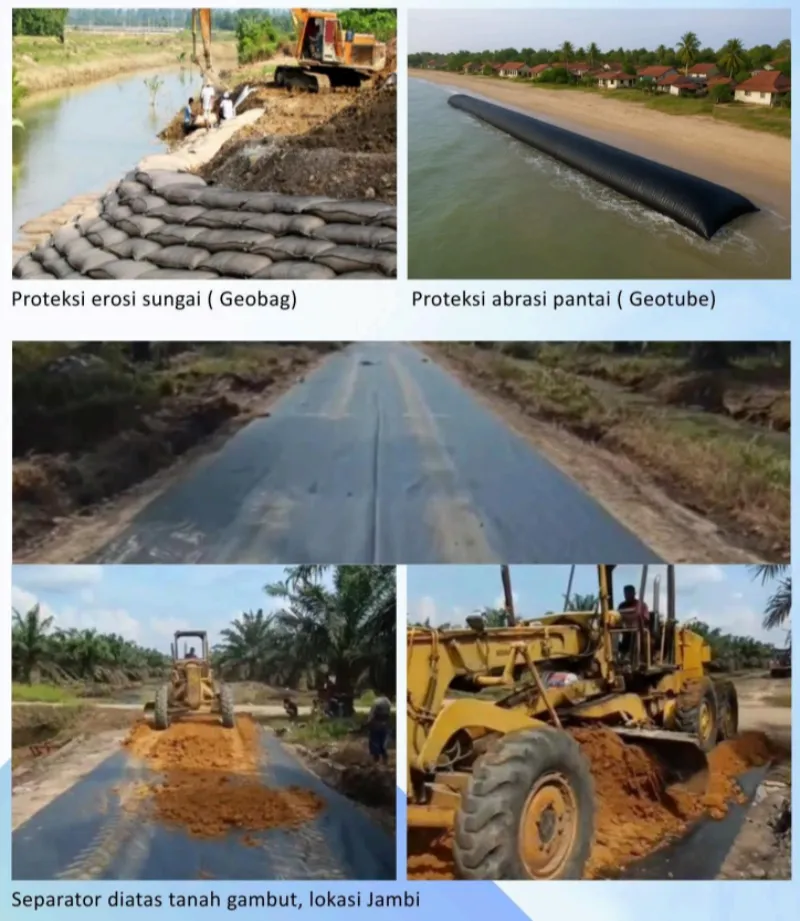

Separator (Pemisah Lapisan)
Memisahkan dua lapisan tanah atau material dengan karakteristik berbeda, mencegah pencampuran, serta menjaga kinerja masing-masing lapisan.
Cushioning (Lapisan Pelindung)
Berfungsi sebagai lapisan pelindung pada struktur lain seperti geomembrane agar tidak rusak akibat gesekan atau tekanan langsung dari material kasar.
Perkuatan Timbunan
Menambah kekuatan tanah timbunan, mencegah penurunan berlebihan, dan meningkatkan daya dukung lahan.
Perkuatan Lereng
Memberikan stabilitas tambahan pada lereng curam, mencegah longsor, serta memperpanjang umur struktur perkuatan.
Pembuatan Produk Turunan (Geobag, EcoTube, dsb.)
EcoTex woven digunakan sebagai material utama dalam pembuatan geobag, EcoTube, dan geocontainer yang diaplikasikan untuk pengendalian abrasi, reklamasi, maupun proteksi pantai.
Filterisasi (Penyaringan)
Menyaring aliran air agar partikel tanah tidak ikut terbawa, menjaga stabilitas struktur drainase, tanggul, maupun lereng.
EcoTex Woven Reguler 200 Gram MD
Technical Data Sheet (TDS)
TEST UJI TARIK MD GEOTEXTILE 200 GRAM
| BATCH NUMBER | 20250508-001 | TEST DATE | 09/08/2025 |
| TEST MAN | MARYAH | TEMPERATURE(C) | 23 |
| WIDTH(HEMM) | 100 MM | GAUGE LENGTH (MM) | 200 MM |
| SPECIFICATIONS | 200 GR | TEXTURE OF MATERIAL | WOVEN GEOTEXTILE |
| RAW MATERIALS | POLYPROPHYLENE | ROLL SIZE | 4X200 METER |
| SERIAL NUMBER | MAXIMUM LOAD MD (N) | TENSILE STRENGTH MD (KN) | MAXIMUM ELONGATION MD (%) | MATERIAL THICKNESS (mm) |
|---|---|---|---|---|
| 1 | 3914 | 39.14 | 19.88 % | ± 0.42 |
| 2 | 3912 | 39.12 | 19.82 % | ± 0.43 |
| 3 | 3696 | 36.96 | 20.71 % | ± 0.41 |
| 4 | 3788 | 37.88 | 20.25 % | ± 0.42 |
| 5 | 3614 | 36.14 | 18.25 % | ± 0.40 |
| 6 | 3708 | 37.08 | 17.81 % | ± 0.40 |
EcoTex Woven Reguler 200 Gram CD
Technical Data Sheet (TDS)
TEST UJI TARIK CD GEOTEXTILE 200 GRAM
| BATCH NUMBER | 20250508-001 | TEST DATE | 09/08/2025 |
| TEST MAN | MARYAH | TEMPERATURE(C) | 23 |
| WIDTH(HEMM) | 100 MM | GAUGE LENGTH (MM) | 200 MM |
| SPECIFICATIONS | 200 GR | TEXTURE OF MATERIAL | WOVEN GEOTEXTILE |
| RAW MATERIALS | POLYPROPHYLENE | ROLL SIZE | 4X200 METER |
| SERIAL NUMBER | MAXIMUM LOAD MD (N) | TENSILE STRENGTH MD (KN) | MAXIMUM ELONGATION MD (%) | MATERIAL THICKNESS (mm) |
|---|---|---|---|---|
| 1 | 3190 | 31.90 | 20.17 % | ± 0.41 |
| 2 | 3262 | 32.62 | 17.96 % | ± 0.41 |
| 3 | 3180 | 31.80 | 17.96 % | ± 0.41 |
| 4 | 3046 | 30.46 | 19.46 % | ± 0.40 |
| 5 | 3146 | 31.46 | 14.45 % | ± 0.40 |
| 6 | 3180 | 31.80 | 17.06 % | ± 0.40 |
EcoTex Woven Reguler 250 Gram MD
Technical Data Sheet (TDS)
TEST UJI TARIK MD GEOTEXTILE 250 GRAM
| BATCH NUMBER | 20250508-001 | TEST DATE | 09/08/2025 |
| TEST MAN | MARYAH | TEMPERATURE(C) | 23 |
| WIDTH(HEMM) | 100 MM | GAUGE LENGTH (MM) | 200 MM |
| SPECIFICATIONS | 250 GR | TEXTURE OF MATERIAL | WOVEN GEOTEXTILE |
| RAW MATERIALS | POLYPROPHYLENE | ROLL SIZE | 4X200 METER |
| SERIAL NUMBER | MAXIMUM LOAD MD (N) | TENSILE STRENGTH MD (KN) | MAXIMUM ELONGATION MD (%) | MATERIAL THICKNESS (mm) |
|---|---|---|---|---|
| 1 | 4846 | 48.46 | 25.02 % | ± 0.41 |
| 2 | 4538 | 45.38 | 25.40 % | ± 0.41 |
| 3 | 4658 | 46.58 | 27.00 % | ± 0.41 |
| 4 | 4718 | 47.18 | 27.88 % | ± 0.42 |
| 5 | 4468 | 44.68 | 26.35 % | ± 0.40 |
| 6 | 4038 | 40.38 | 22.01 % | ± 0.40 |
EcoTex Woven Reguler 250 Gram CD
Technical Data Sheet (TDS)
TEST UJI TARIK CD GEOTEXTILE 250 GRAM
| BATCH NUMBER | 20250508-001 | TEST DATE | 09/08/2025 |
| TEST MAN | KUDIRAH | TEMPERATURE(C) | 23 |
| WIDTH(HEMM) | 100 MM | GAUGE LENGTH (MM) | 200 MM |
| SPECIFICATIONS | 250 GR | TEXTURE OF MATERIAL | WOVEN GEOTEXTILE |
| RAW MATERIALS | POLYPROPHYLENE | ROLL SIZE | 4X200 METER |
| SERIAL NUMBER | MAXIMUM LOAD MD (N) | TENSILE STRENGTH MD (KN) | MAXIMUM ELONGATION MD (%) | MATERIAL THICKNESS (mm) |
|---|---|---|---|---|
| 1 | 3588 | 35.88 | 22.26 % | ± 0.41 |
| 2 | 3688 | 36.88 | 24.58 % | ± 0.40 |
| 3 | 3986 | 39.86 | 27.00 % | ± 0.41 |
| 4 | 3772 | 37.72 | 25.75 % | ± 0.40 |
| 5 | 3564 | 35.64 | 26.40 % | ± 0.40 |
| 6 | 3508 | 35.08 | 23.40 % | ± 0.40 |
EcoTex Woven PP High Spec
Technical Data Sheet (TDS)
| Properties | Test Method | Units | RS 50/30(a) | RS 55/50(a) | RS 70/60(a) |
|---|---|---|---|---|---|
| Tensile Properties | |||||
| • Grab Tensile Strength (MD/TD) (min.ave.) | ASTM D 4632 | N | 1400/1000 | 1800/1400 | 2200/1650 |
| • Grab Tensile Elongation (MD/TD)(b) | ASTM D 4632 | % | < 50 | < 50 | < 50 |
| • Wide Width Strength (MD/TD) (min.ave.) | ASTM D 4595 | kN/m | 50/30 | 55/50 | 70/60 |
| • Wide Width Elongation (MD/TD)(b) | ASTM D 4595 | % | < 50 | < 50 | < 50 |
| Trapezoidal Tear Strength (MD/TD) (min.ave.) | ASTM D 4533 | N | 500/350 | 650/500 | 1100/900 |
| CBR Puncture Strength (min.ave.) | ASTM D 6241 | N | 4500 | 5600 | 7200 |
| TYPICAL ROLL DIMENSIONS | |||||
| Roll Length(c) | 100 m | 100 m | 100 m | ||
| Roll Width(c) | 6 m | 6 m | 6 m | ||
| Roll Area(c) | 600 m² | 600 m² | 600 m² | ||
MIRAFI Woven PP
Technical Data Sheet (TDS)
MIRAFI PP Woven
| Properties | Test Standard | Unit | PP 100-s | PP 120-40 | PP 120-s | PP 200-40 | PP 200-s | |
|---|---|---|---|---|---|---|---|---|
| Mechanical | ||||||||
| Wide width tensile strength | MD | ISO 10319 | kN/m | 100 | 120 | 120 | 200 | 200 |
| Wide width tensile strength | CD | ISO 10319 | kN/m | 100 | 40 | 120 | 40 | 200 |
| Strain at nominal tensile strength | MD | ISO 10319 | % | 10 | 15 | 10 | 15 | 10 |
| Strain at nominal tensile strength | CD | ISO 10319 | % | 10 | 15 | 10 | 15 | 10 |
| Tensile strength at 2% strain | MD | kN/m | 25 | 25 | 50 | |||
| Tensile strength at 2% strain | CD | kN/m | 25 | 25 | 50 | |||
| Tensile strength at 5% strain | MD | kN/m | 50 | 35 | 50 | 45 | 90 | |
| Tensile strength at 5% strain | CD | kN/m | 50 | 50 | 90 | |||
| CBR puncture | ISO 12236 | N | 15 | 8 | 15 | 8 | 125 | |
| Drop cone penetration diameter | ISO 13433 | mm | 9 | 15 | 10 | 12 | 8 | |
| Hydraulic | ||||||||
| Pore size, O⁹⁰ | ISO 12956 | mm | 0.35 | 0.50 | 0.40 | 0.35 | 0.45 | |
| Water permeability, vH₅₀ | ISO 11058 | L/m²/s | 10 | 20 | 15 | 10 | 20 | |
| Form of supply | ||||||||
| Roll width | m | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | ||
| Roll length | m | 100 | 100 | 100 | 100 | 100 | ||
Woven PP HOCK
Technical Data Sheet (TDS)
| Property | Test Method | Units | HK-W/F 40/40 | HK-W/F 55/55 | HK-W/F 70/70 | HK-W/F 90/90 | HK-W/F 110/110 | HK-W/F 100/100 | HK-W/F 150/125 | HK-W/F 150/150 | HK-W/F 200/200 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Strength@Ultimate | MD | EN/ISO 10319 | kN/m | 40 | 55 | 70 | 90 | 110 | 100/100 | 150/125 | 150/150 | 200/200 | |
| Strength@Ultimate | CD | EN/ISO 10319 | kN/m | 40 | 55 | 70 | 90 | 110 | |||||
| Elongation | MD | ASTM | % | <15 | <15 | <15 | <15 | <15 | <15 | <15 | <15 | <15 | |
| Elongation | CD | ASTM | % | <15 | <15 | <15 | <15 | <15 | <15 | <15 | <15 | <15 | |
| Tear Strength | MD/CD | ASTM D4533 | grams | 200 | 230 | 250 | 300 | 370 | 340 | 480 | 450 | 580 | 930 |
| CBR Puncture | ASTM | N | 1750 | ||||||||||
| Pore Open Size O9B | ASTM | mm | 0.2-0.8 | ||||||||||
| Water Flow | ASTM D4491 | l/m²/s | 10-100 | ||||||||||
| Width x Length | m | 4.0m / 5m / 5.25m x 100m / 200m (Customized) | |||||||||||
EcoTex Woven PP
Technical Data Sheet (TDS)
| Properties | TestMethod | Unit | 100-100 | 200-50 | 200-200 | 300-100 | 400-50 |
|---|---|---|---|---|---|---|---|
| Woven Geotextile | |||||||
| Strength@Ultimate(MD) | ASTMD4595 | kN/m | 100 | 200 | 200 | 300 | 400 |
| Strength@Ultimate(TD) | ASTM D4595 | kN/m | 100 | 50 | 200 | 100 | 50 |
| Elongation MD | ASTM D4595 | % | 10±2 | 10±2 | 10±2 | 10±2 | 10±2 |
| Strength@5%Strain(MD) | ASTM D4595 | kN/m | 42 | 65 | 85 | 95 | 105 |
| CBR Strength | EN ISO 12236 | kN | 7.5 | 9.2 | 10.6 | 8.9 | 12.5 |
| Drop Strength | EN 918 | mm | 11 | 11 | 11 | 11 | 11 |
| Creep Reduced Strength(MD) | ASTMD 5262 | kN/m | 69 | 120 | 140 | 205 | 300 |
| Long Term Design Strength(MD) | GRI-GT7 | kN/m | 57 | 95 | 118 | 170 | 220 |
| Apparent Open Size | ASTM D4751 | mm | 0.05-0.50 | ||||
| Flow Rate | ASTM D4491 | L/m2/S | 15 | 15 | 15 | 15 | 15 |
| Roll Width | m | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | |
| Roll Length | m | 100 | 100 | 100 | 100 | 100 | |
Kesimpulan:
Ecotex woven berbahan Polypropylene (PP) merupakan material geosintetik yang tangguh, ekonomis, dan multifungsi. Dengan kekuatan tarik tinggi, ketahanan kimia dan biologis, serta umur pakai yang panjang, EcoTex woven sangat ideal untuk aplikasi pemisahan, perkuatan, filtrasi, hingga perlindungan. Material ini telah terbukti efektif dalam berbagai proyek konstruksi berskala kecil hingga besar, mulai dari jalan raya, rel kereta, bendungan, hingga reklamasi pantai.
